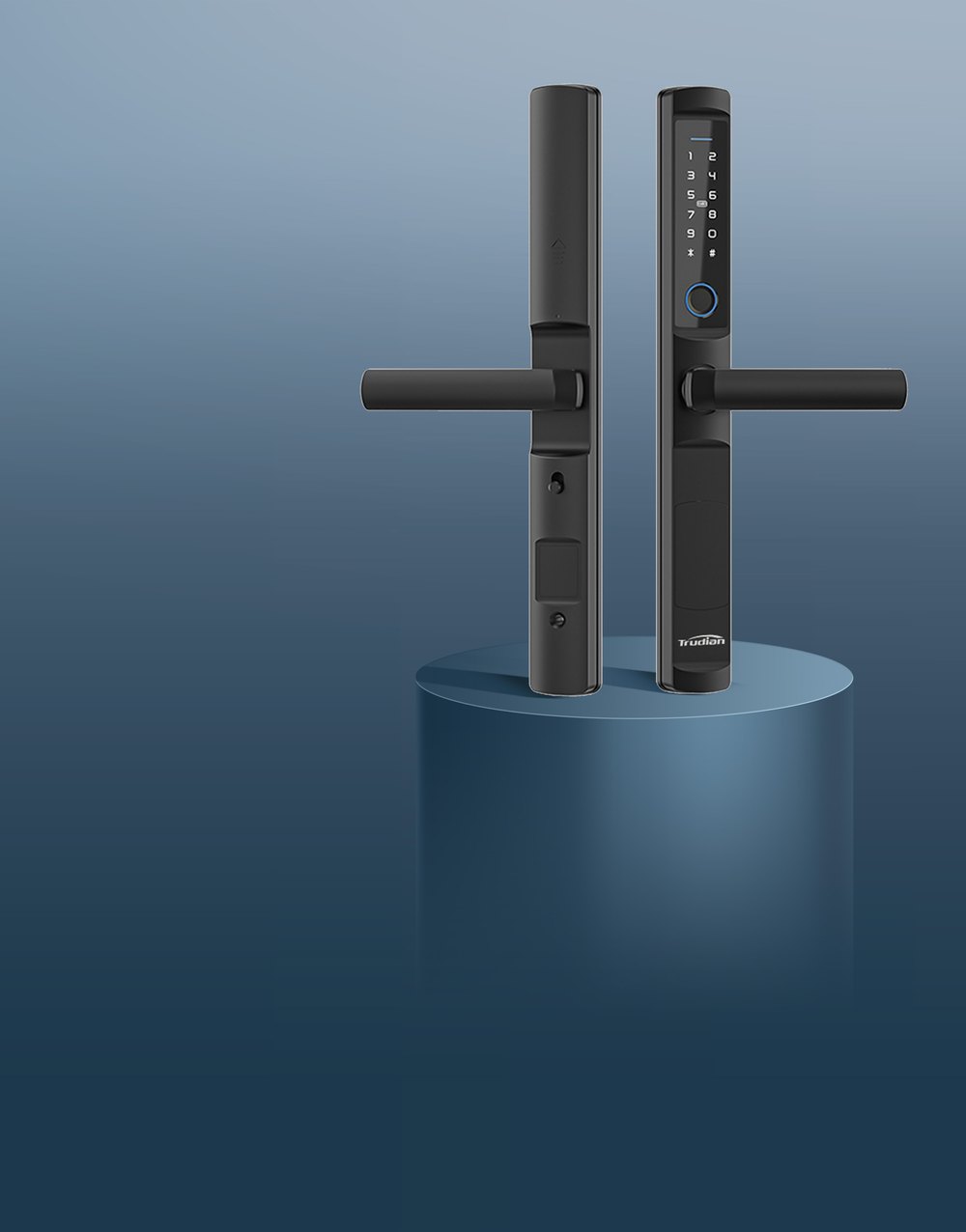

Aluminium and thermal-break doors have a narrow stile. At 36 mm wide the F2 Slim drops into the frame without cutting the profile — common in Vietnamese shopfronts and modern apartment blocks.
Specification
| Parameter | Value |
|---|---|
| Unlock methods | Fingerprint, PIN, card, dynamic code, key, remote |
| Dimensions | 36 × 345 × 21 mm |
| Material | Zinc alloy, black nickel |
| Mortise | Single point 3085–6085 |
| Battery | 4 × AAA, DC 6 V |
| Life cycle | 300,000 operations |
| Operating temp. | −20 °C to +60 °C |
Documents
The datasheet, type-test report for GA374-2019 and GB21556-2008, and the packing list ship with every order. Request the pack on the contact page.
